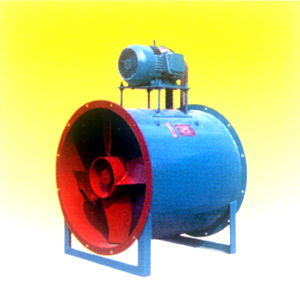

T30 I（GD30K2）型軸流通風機，適用于化工造紙、鍍鋅、養雞廠等單位輸送各種有害氣體但溫度不得超60℃，亦可以聯結于管道中間。
|
GD30K2(T30Ⅰ)軸流通風機性能參數表 |
| 機號 |
葉片 |
轉速(r/min) |
全壓(Pa) |
流量(m3/h) |
功率(KW) |
電機型號 |
| 數量 |
角度(度) |
| 6 |
4 |
15-20 |
1450 |
167 |
7200-9500 |
1.1 |
Y90S-4 |
| 6 |
4 |
25-30 |
1450 |
177-185 |
11300-13150 |
2.2 |
Y100L1-4 |
| 6 |
4 |
15-35 |
960 |
74-81 |
4800-8700 |
0.75 |
Y90S-6 |
| 7 |
4 |
15-20 |
1450 |
226 |
11500-14100 |
2.2 |
Y100L1-4 |
| 7 |
4 |
25-30 |
1450 |
235-245 |
18000-20900 |
4 |
Y112M-4 |
| 7 |
4 |
15-30 |
960 |
93-103 |
7650-19900 |
1.1 |
Y90L-6 |
| 8 |
4 |
15-20 |
1450 |
294 |
17300-22000 |
5.5 |
Y132S-4 |
| 8 |
4 |
25-30 |
1450 |
314-324 |
27000-31300 |
7.5 |
Y132M-4 |
| 8 |
4 |
15-20 |
960 |
128 |
11400-14900 |
1.5 |
Y100L-6 |
| 8 |
4 |
25-30 |
960 |
137-145 |
17800-20600 |
2.2 |
Y112M-6 |
| 9 |
4 |
15-20 |
960 |
157 |
16200-21200 |
2.2 |
Y112M-6 |
| 9 |
4 |
25-30 |
960 |
177-183 |
23200-29300 |
4 |
Y132M1-6 |
| 10 |
4 |
15-20 |
960 |
206 |
22600-29700 |
4 |
Y132M1-6 |
| 10 |
4 |
25-30 |
960 |
226-235 |
35400-41000 |
7.5 |
Y160M-6 |
| 6 |
6 |
15-20 |
1450 |
186-206 |
7800-9700 |
1.1 |
Y90S-4 |
| 6 |
6 |
25-30 |
1450 |
216-235 |
12000-14000 |
2.2 |
Y100L1-4 |
| 6 |
6 |
15-30 |
960 |
78-104 |
5170-9270 |
0.75 |
Y90S-6 |
| 7 |
6 |
15-20 |
1450 |
255-284 |
12500-15000 |
2.2 |
Y100L1-4 |
| 7 |
6 |
25-30 |
1450 |
304-314 |
19000-22500 |
4 |
Y112M-4 |
| 7 |
6 |
15-30 |
960 |
103-137 |
8270-14900 |
1.1 |
Y90L-6 |
| 8 |
6 |
15-20 |
1450 |
334-373 |
1810-22650 |
5.5 |
Y132S-4 |
| 8 |
6 |
25-30 |
1450 |
392-412 |
27900-33200 |
7.5 |
Y132M-4 |
| 8 |
6 |
15-20 |
960 |
147-157 |
12000-15000 |
1.5 |
Y100L-6 |
| 8 |
6 |
25-30 |
960 |
167-177 |
18500-22000 |
2.2 |
Y112M-6 |
| 9 |
6 |
15-20 |
960 |
186-206 |
17500-21500 |
2.2 |
Y112M-6 |
| 9 |
6 |
25-30 |
960 |
216-235 |
26800-32000 |
4 |
Y132M1-6 |
| 10 |
6 |
15-20 |
960 |
226-255 |
24000-30000 |
4 |
Y132M1-6 |
| 10 |
6 |
25-30 |
960 |
275-284 |
36000-43000 |
7.5 |
Y160M-6 | | |
